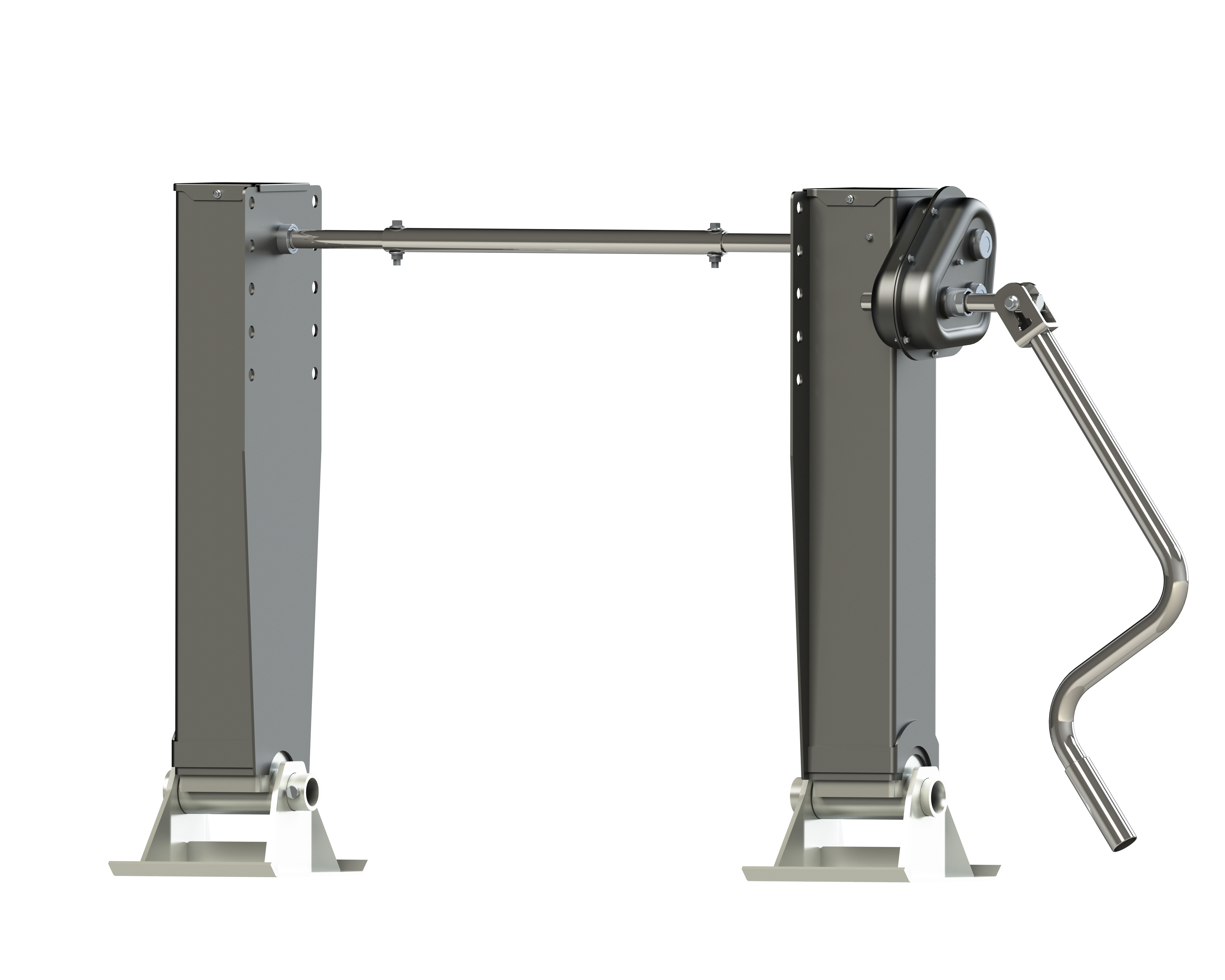

Trailer landing gear LQLS130JZ
➤National standard GB/T267772023 impact requirement can be met
➤Approved by DOT certificate
➤Replaceable cushion foot for easy repair when wornadapt to various compicated road conditions
➤Gearbox is completely filled with low temperature grease
➤Gear material 20CrMnTi,Wear resistance、high impact toughness
➤Special seal structure,Engineered using the latest technology to ensure the product lasts longer in service
➤the shaft is treated with electrophoretic paint,resistscorrosion
➤Approved by DOT certificate
➤Replaceable cushion foot for easy repair when wornadapt to various compicated road conditions
➤Gearbox is completely filled with low temperature grease
➤Gear material 20CrMnTi,Wear resistance、high impact toughness
➤Special seal structure,Engineered using the latest technology to ensure the product lasts longer in service
➤the shaft is treated with electrophoretic paint,resistscorrosion

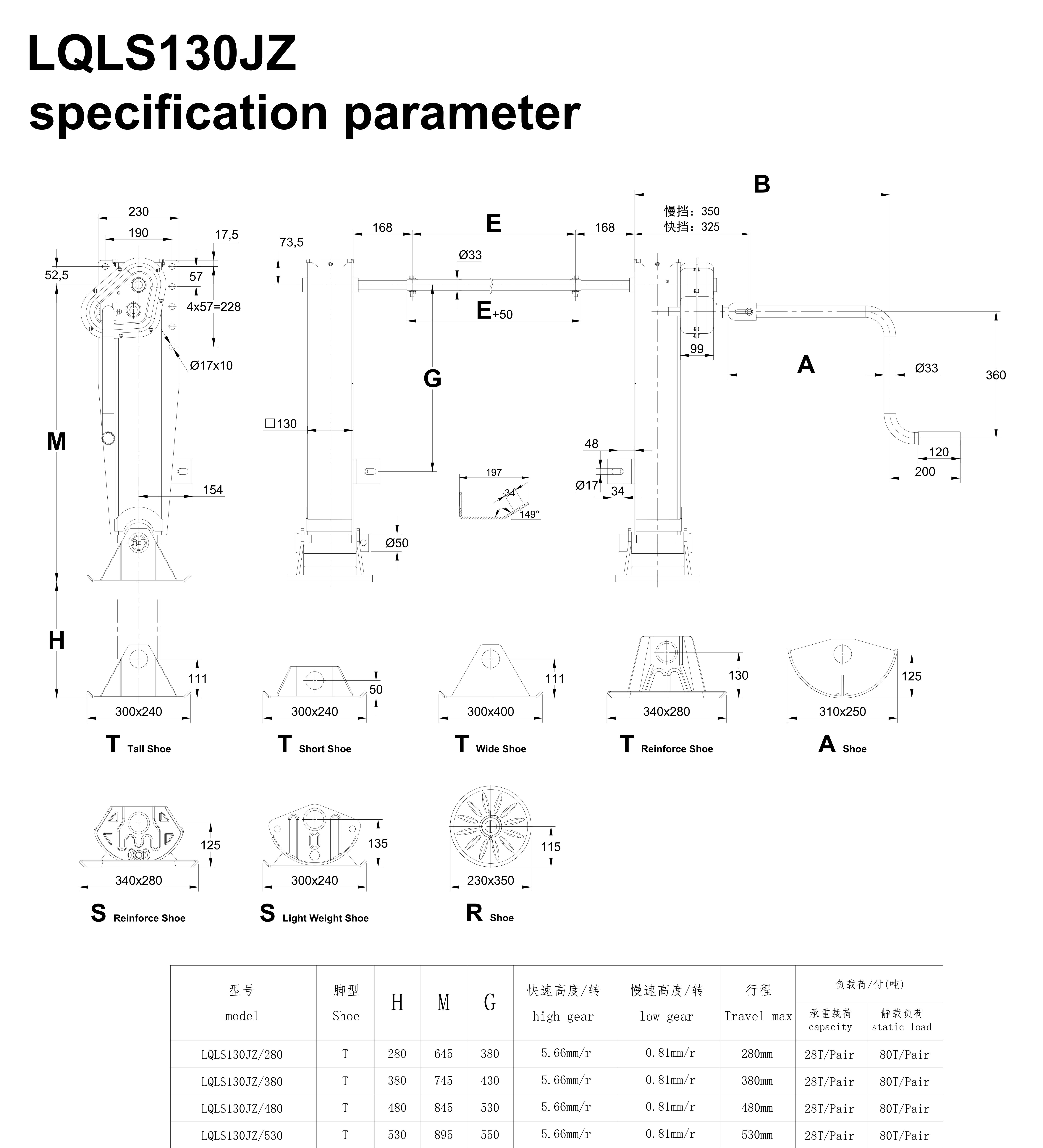

static load：80T/Pair
capacity：28T/Pair
high gear：5.66mm/r
low gear：0.81mm/r
Brand：LQ
Model：LQLS130JZ
info@luqijx.com
QR code
Detail
Powdered metal shaft bushing
Mutually interconnected porosity insidepowdermetallurgy products,productcontains lubricatingoil,good wearresistance,Self-lubricating andrustprotection function
--
Double lead elevating screw nut
QT600-3 is pearlite heat-resisting steel,has medium and high strength,Mediumtoughnessand plasticity good wear resistance and shock absorption,squarestructure,coincide with landing gearinside tube,uniformly distributed load
--
Cover
The cover completely sealed to keepmoisture out
--
Gears
20CrMnTi gear Hardness:57-60HRCcarburizing treatment Wear resistance、high impact toughness
--
Heavy duty thrust bearing
National standard GB/T26777-2023impact requirement can be met
