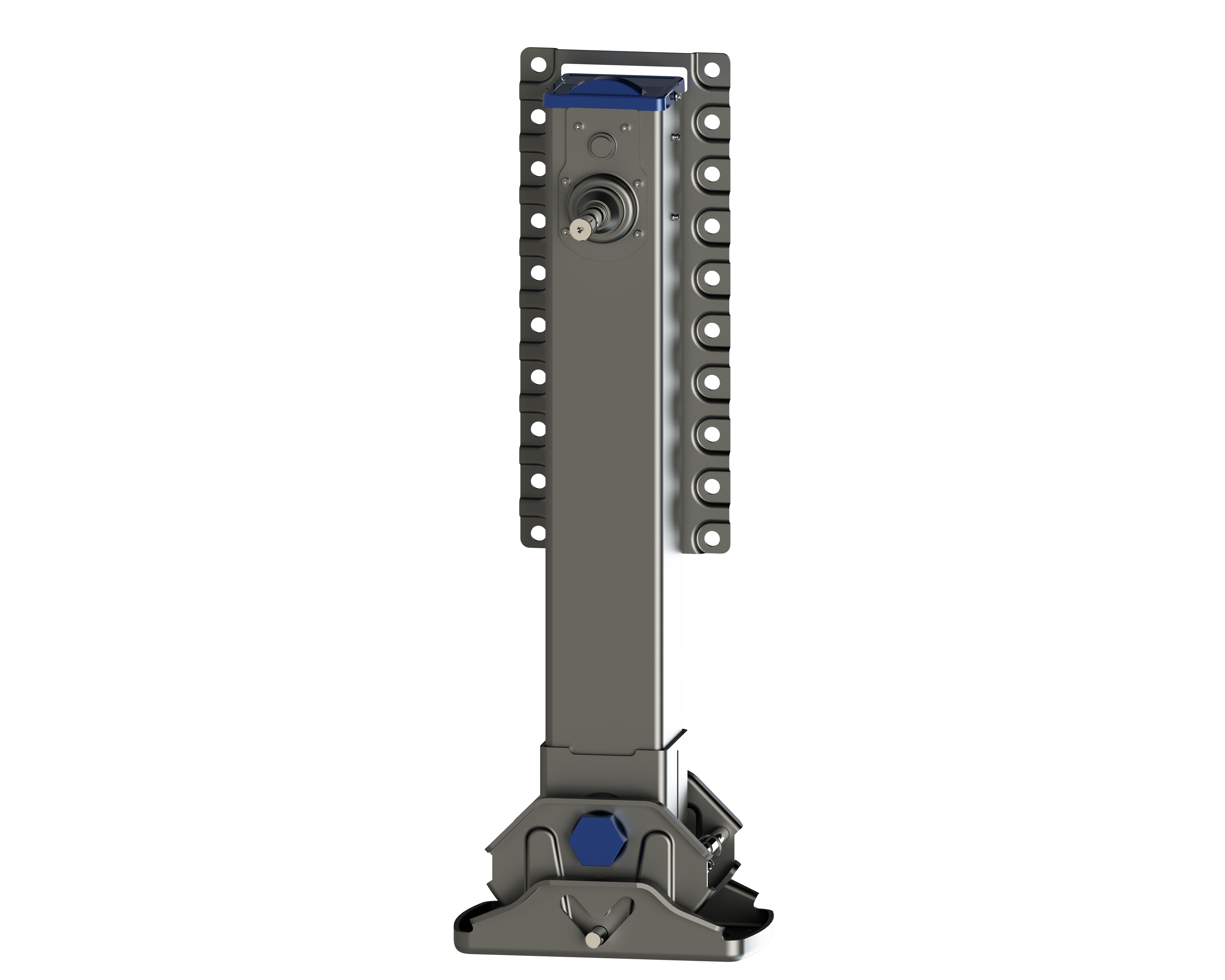

Trailer landing gear LQLS130FNX
➤A variety of mounting height,backplate are available
➤Built-in gear,compact structure

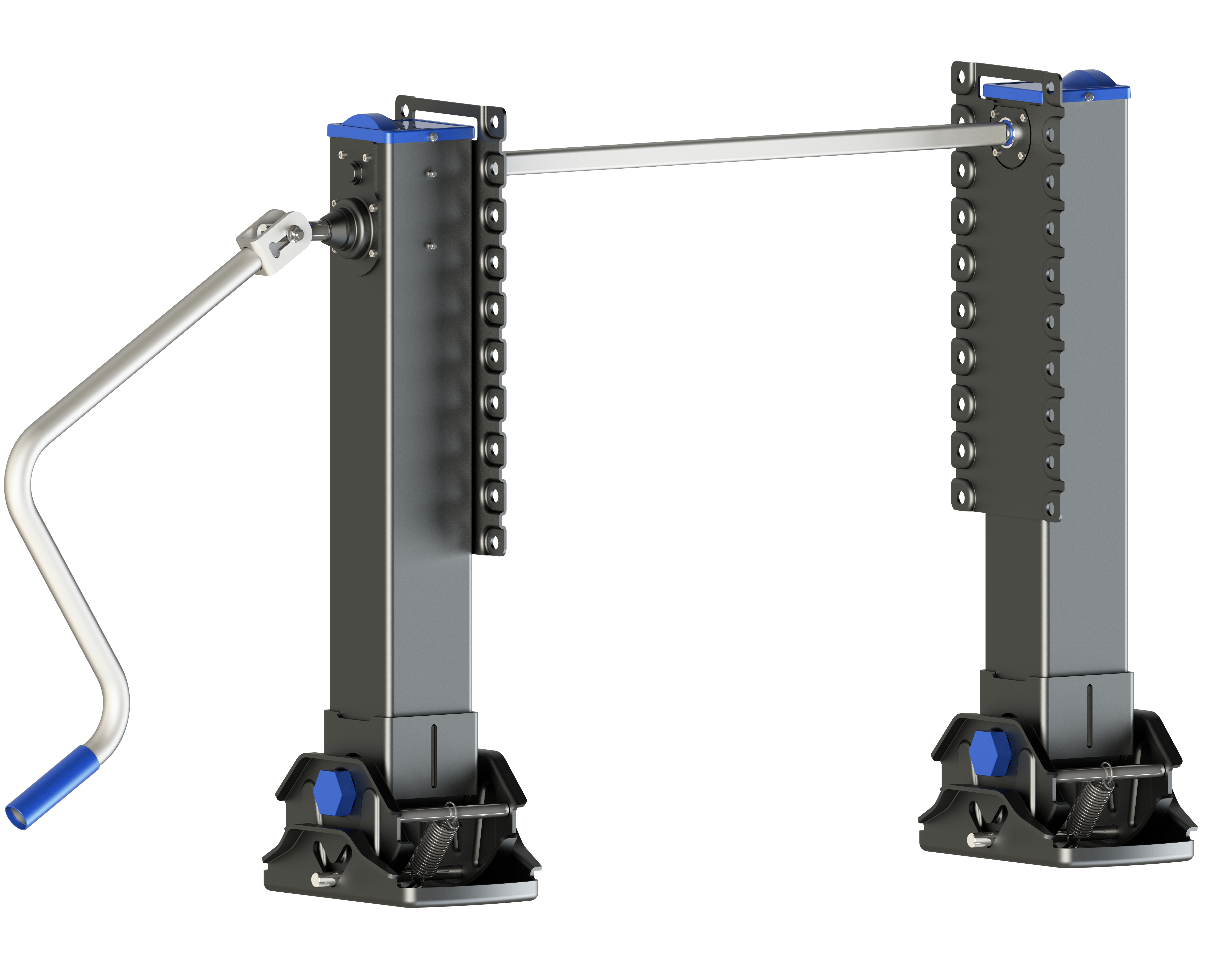

➤Satisfy the tractor and trailer swap transport
➤Special seal structure,Engineered using the latest technology
to ensure the product asts longer in service
➤the shaft is treated with electrophoretic paint,resists corrosion
➤Built-in gear,compact structure
➤Satisfy the tractor and trailer swap transport
➤Special seal structure,Engineered using the latest technology
to ensure the product asts longer in service
➤the shaft is treated with electrophoretic paint,resists corrosion

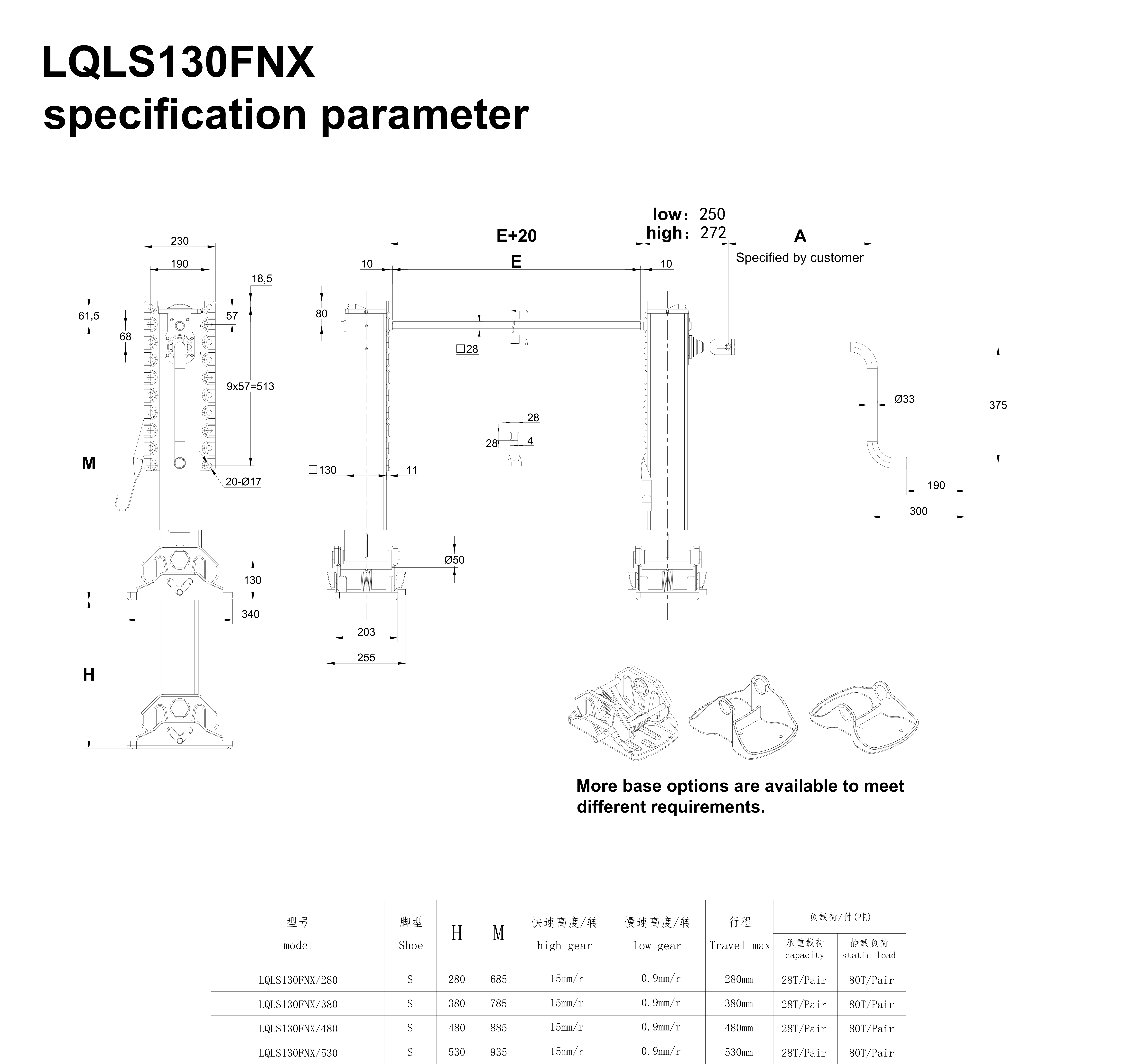

static load：80T/Pair
capacity：28T/Pair
high gear：15mm/r
low gear：0.9mm/r
Brand：LQ
Model：LQLS130FNX
info@luqijx.com
QR code
Detail
Powdered metal shaft bushing
Mutually interconnected porosity insidepowdermetallurgy products,productcontains lubricatingoil,good wearresistance,Self-lubricating andrustprotection function
Double lead elevating screw nut
QT600-3 is pearlite heat-resisting steel,has medium and high strength,Mediumtoughnessand plasticity good wearresistance and shock absorption,squarestructure,coincide with landing gearinside tube,uniformly distributed load
Cover
The cover completely sealed to keepmoisture out

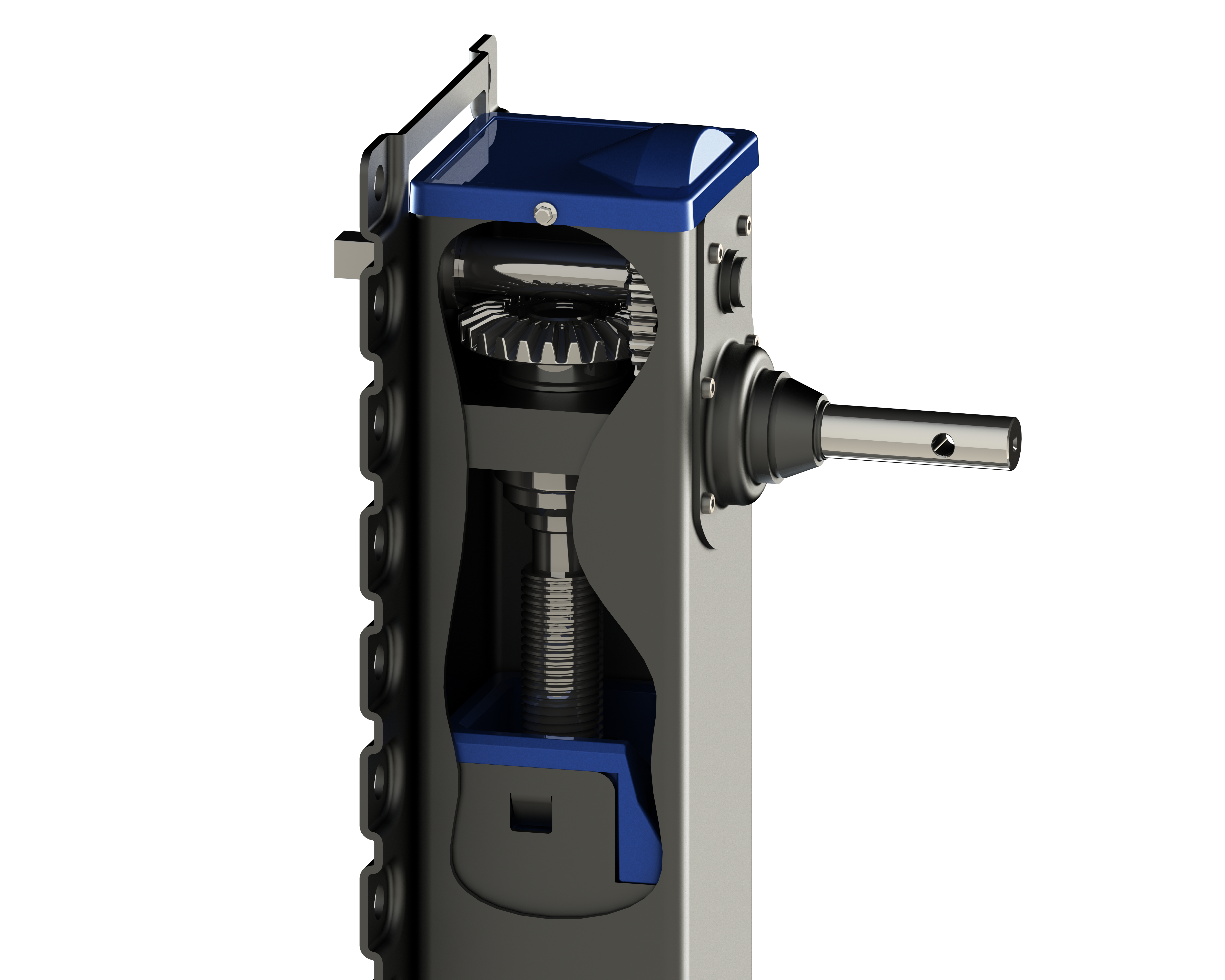

Gears
20CrMnTi gear Hardness:57-60HRCcarburizing treatment Wear resistance、high impact toughness
Heavy duty thrust bearing
National standard GB/T26777-2023impact requirement can be met
