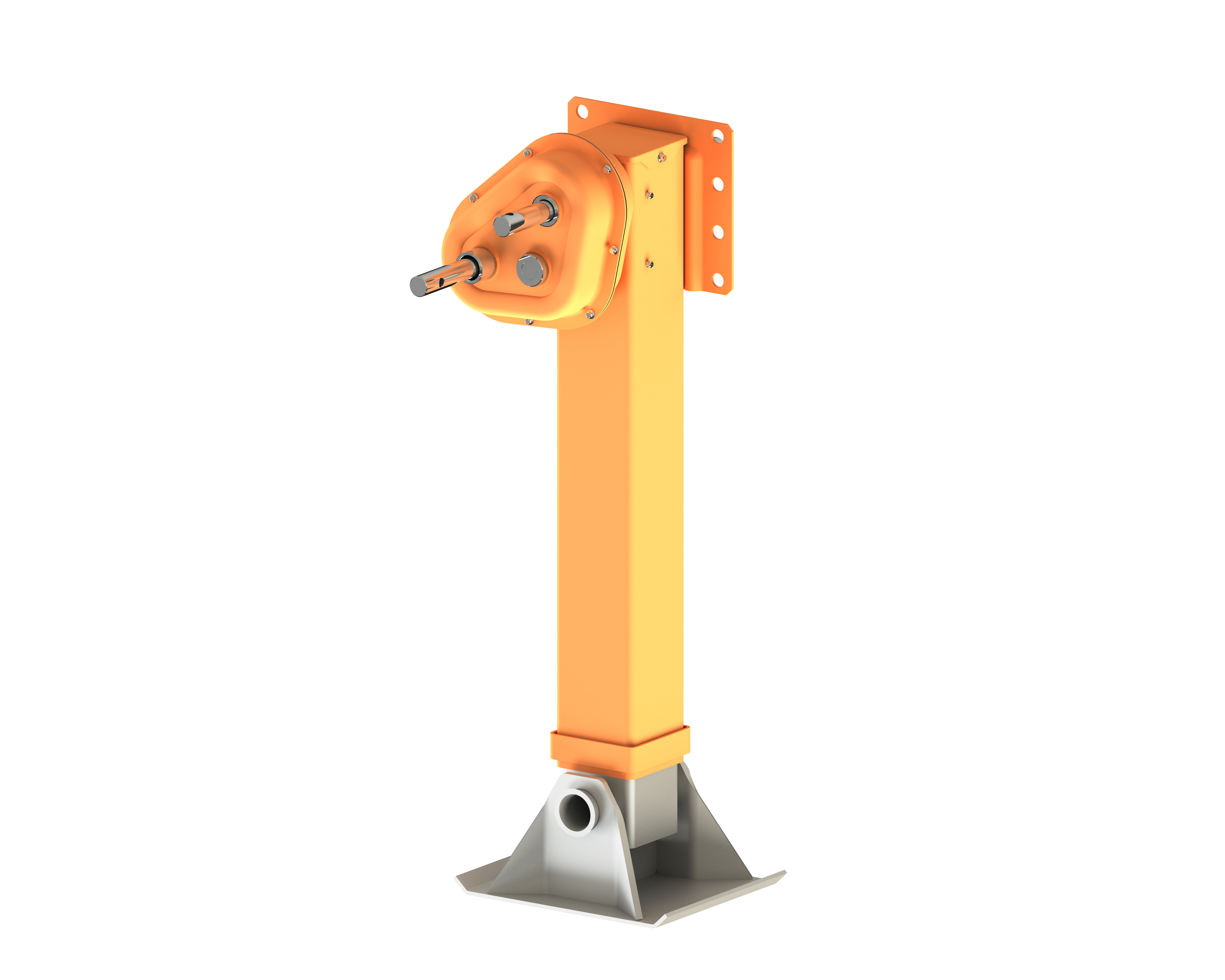

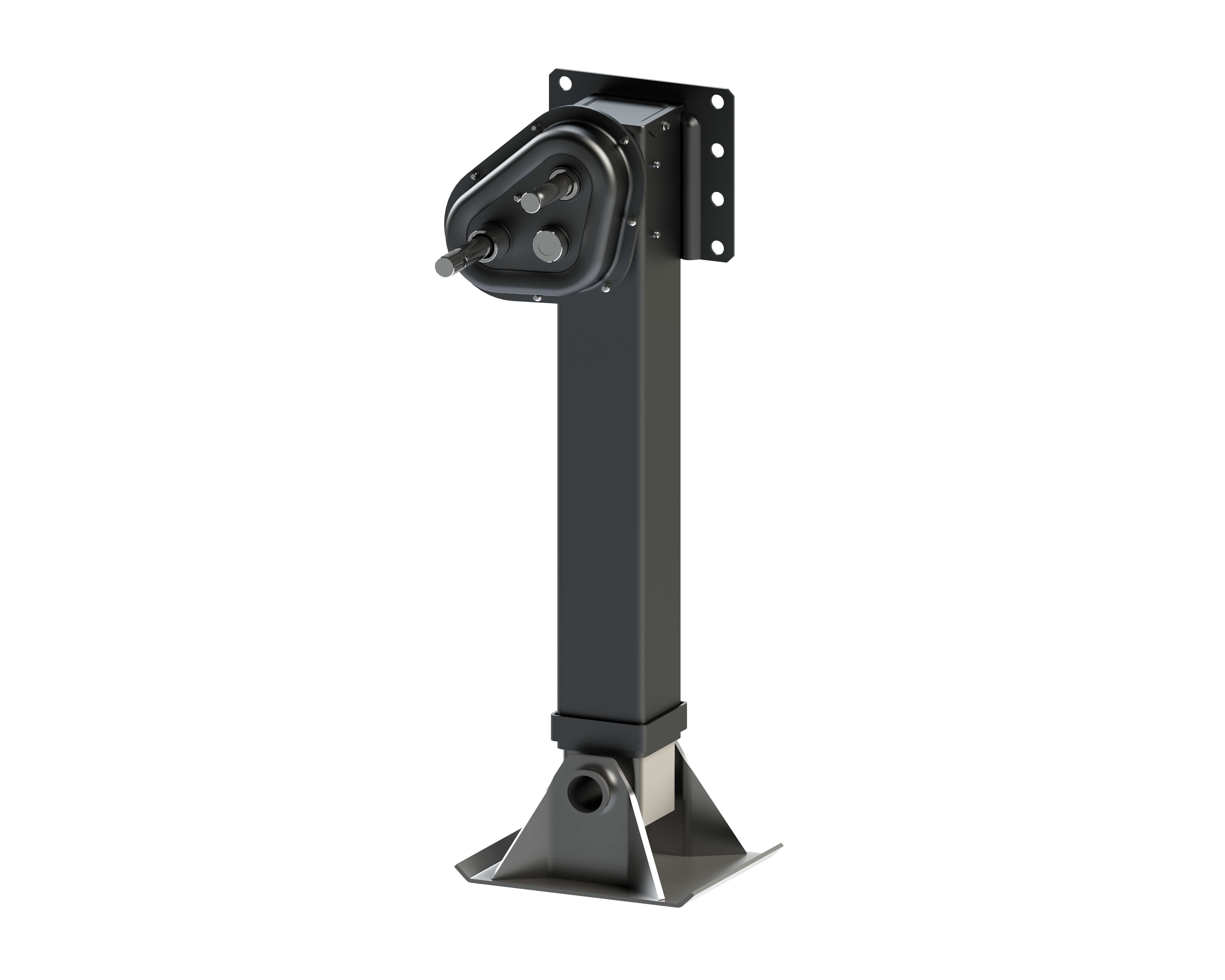

Trailer landing gear LQLS110ds
➤Extended Shaft Design:Laying the Foundation for Front and Back Installation.

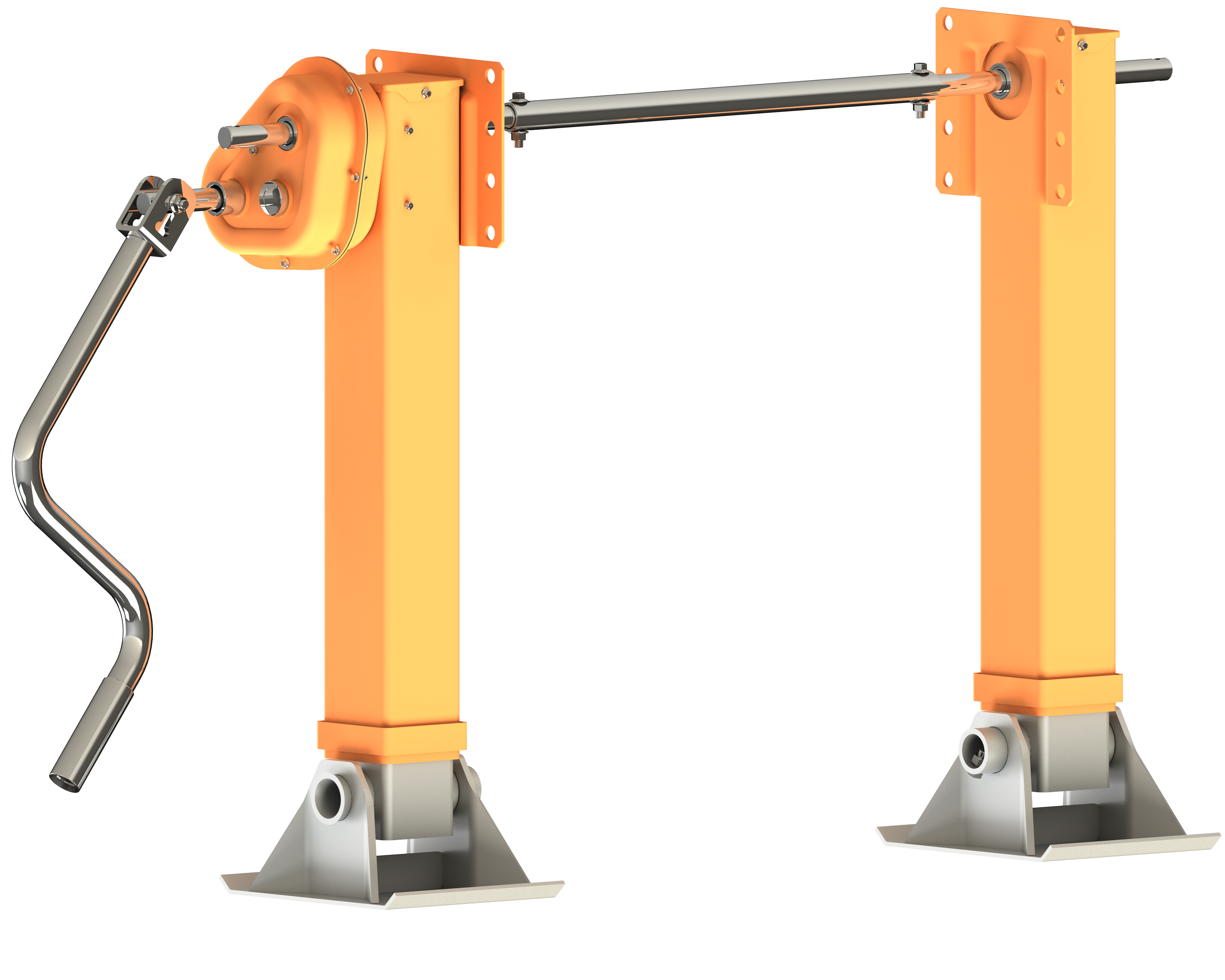

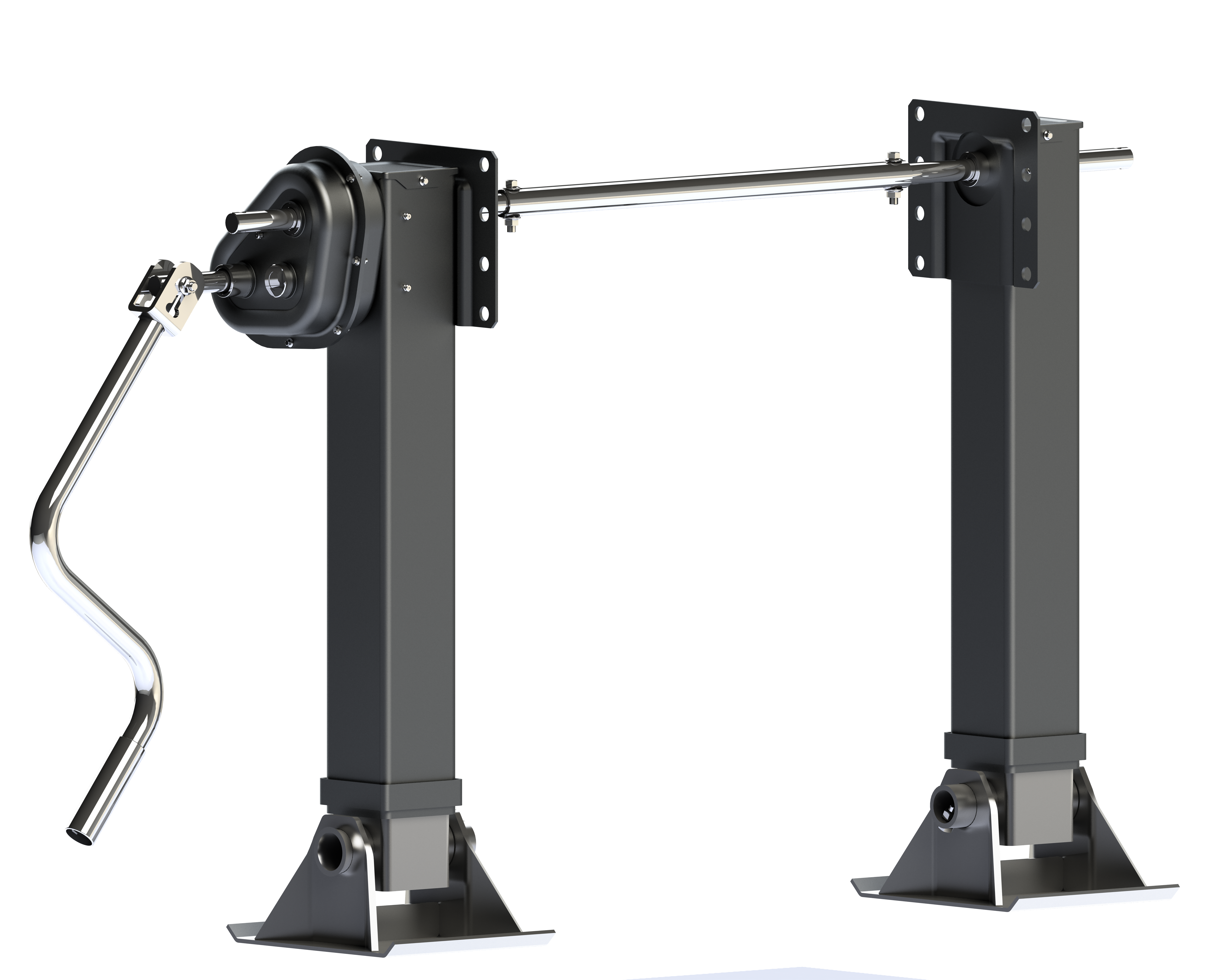

➤As the core supporting device on semi-trailers,the shaft part ofthis outrigger has undergone special lengthening treatment.It isis this detailed design that enables the front and back installationof the main leg and the auxiliary leg.There is no need for additional structural.
➤adjustments;the installation direction can be easily switched onlythrough the adaptation of the shaft length,providing a flexiblesolution for the supporting needs of semi-trailers in differentparking and loading/unloading scenarios.
➤As the core supporting device on semi-trailers,the shaft part ofthis outrigger has undergone special lengthening treatment.It isis this detailed design that enables the front and back installationof the main leg and the auxiliary leg.There is no need for additional structural.
➤adjustments;the installation direction can be easily switched onlythrough the adaptation of the shaft length,providing a flexiblesolution for the supporting needs of semi-trailers in differentparking and loading/unloading scenarios.

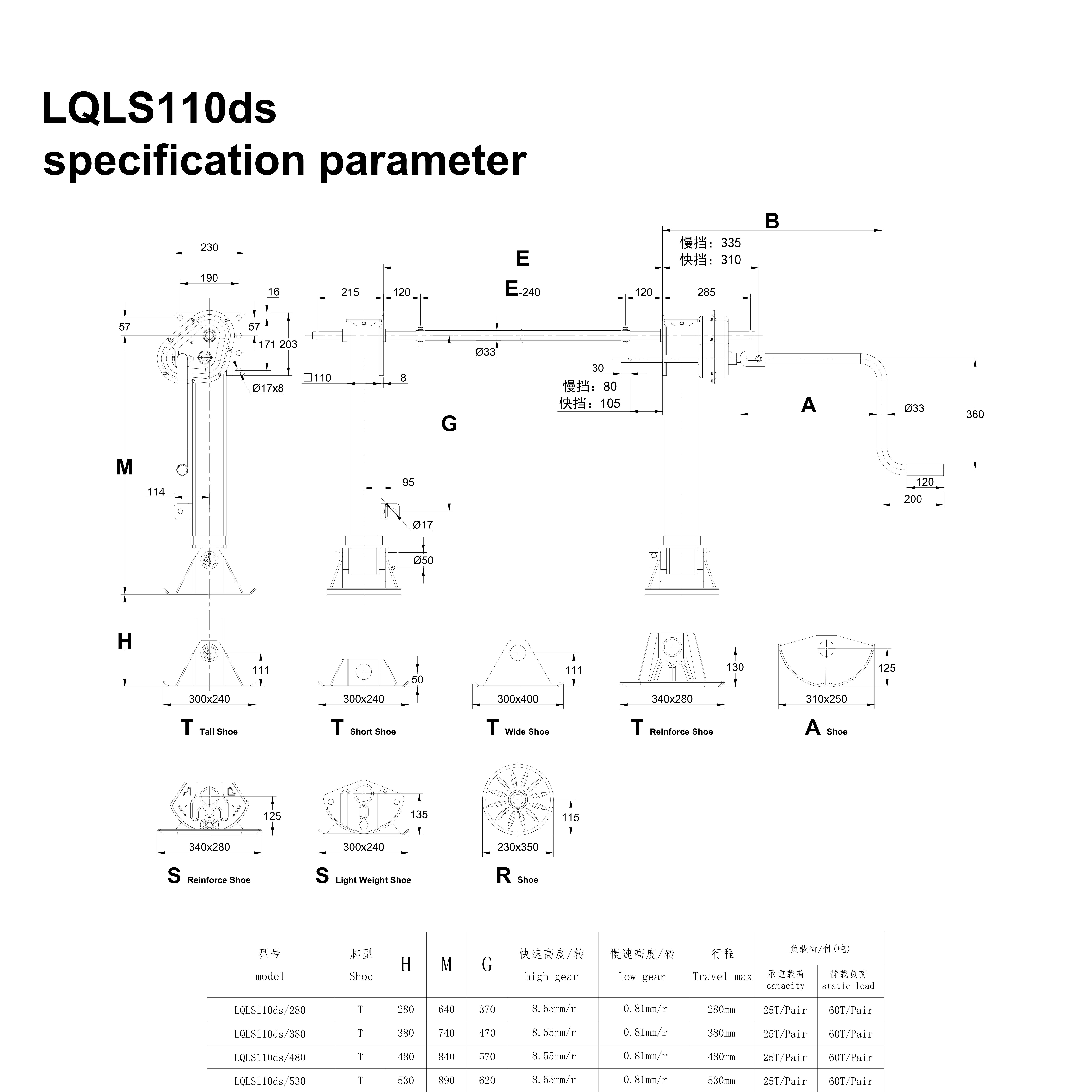

static load：60T/Pair
capacity：25T/Pair
high gear：8.55mm/r
low gear：0.81mm/r
Brand：LQ
Model：LQLS110ds
info@luqijx.com
QR code
Detail
Powdered metal shaft bushingMutually
interconnected porosity insidepowdermetallurgy products,productcontains lubricatingoil,good wearresistance,Self-lubricating andrustprotection function
Double lead elevating screw nut
QT600-3 is pearlite heatresisting steel,has medium and high strength,Mediumtoughnessand plasticity good wearresistance and shock absorption,squarestructure,coincide with landing gearinside tube,uniformly distributed load
Cover
The cover completely sealed to keepmoisture out

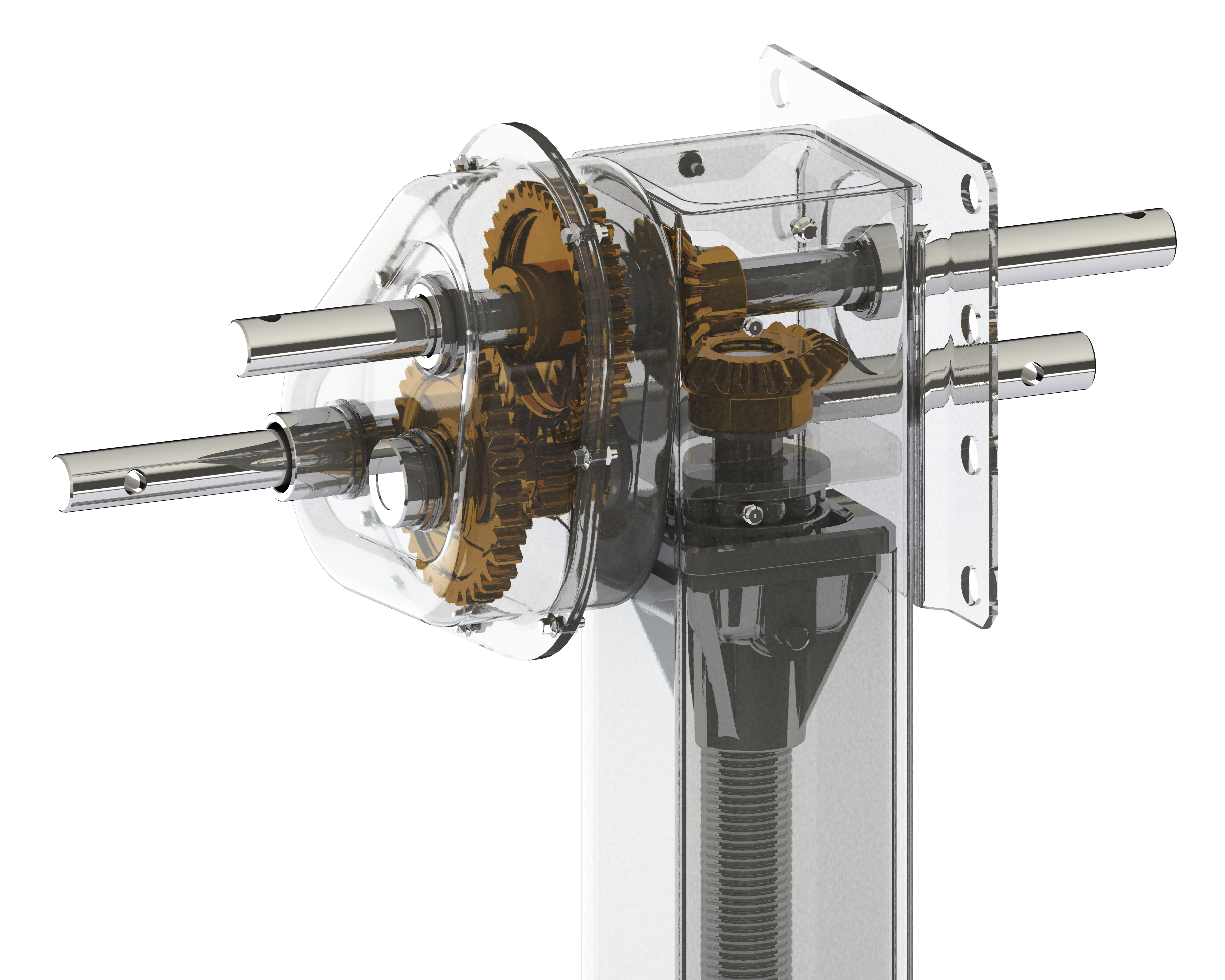

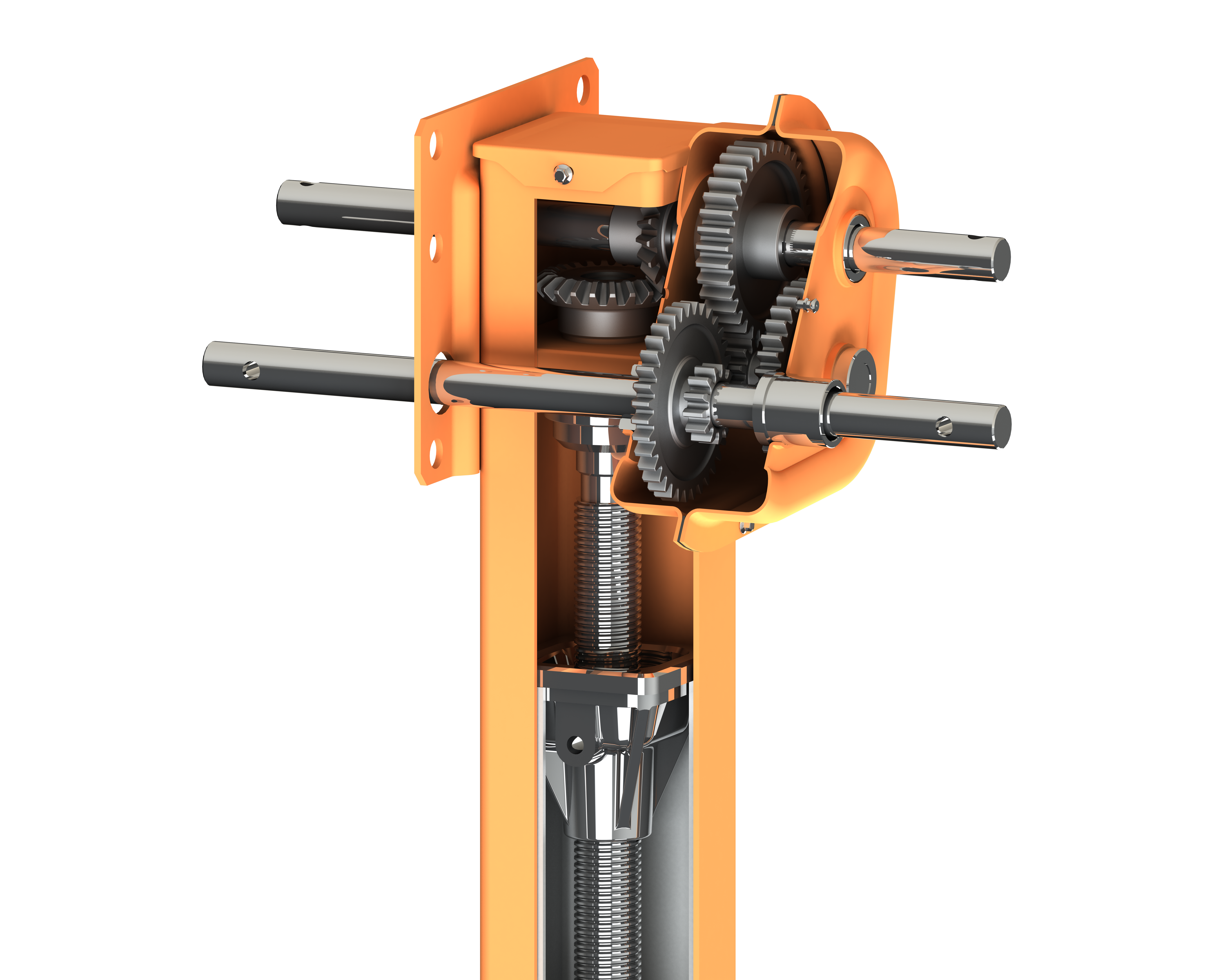

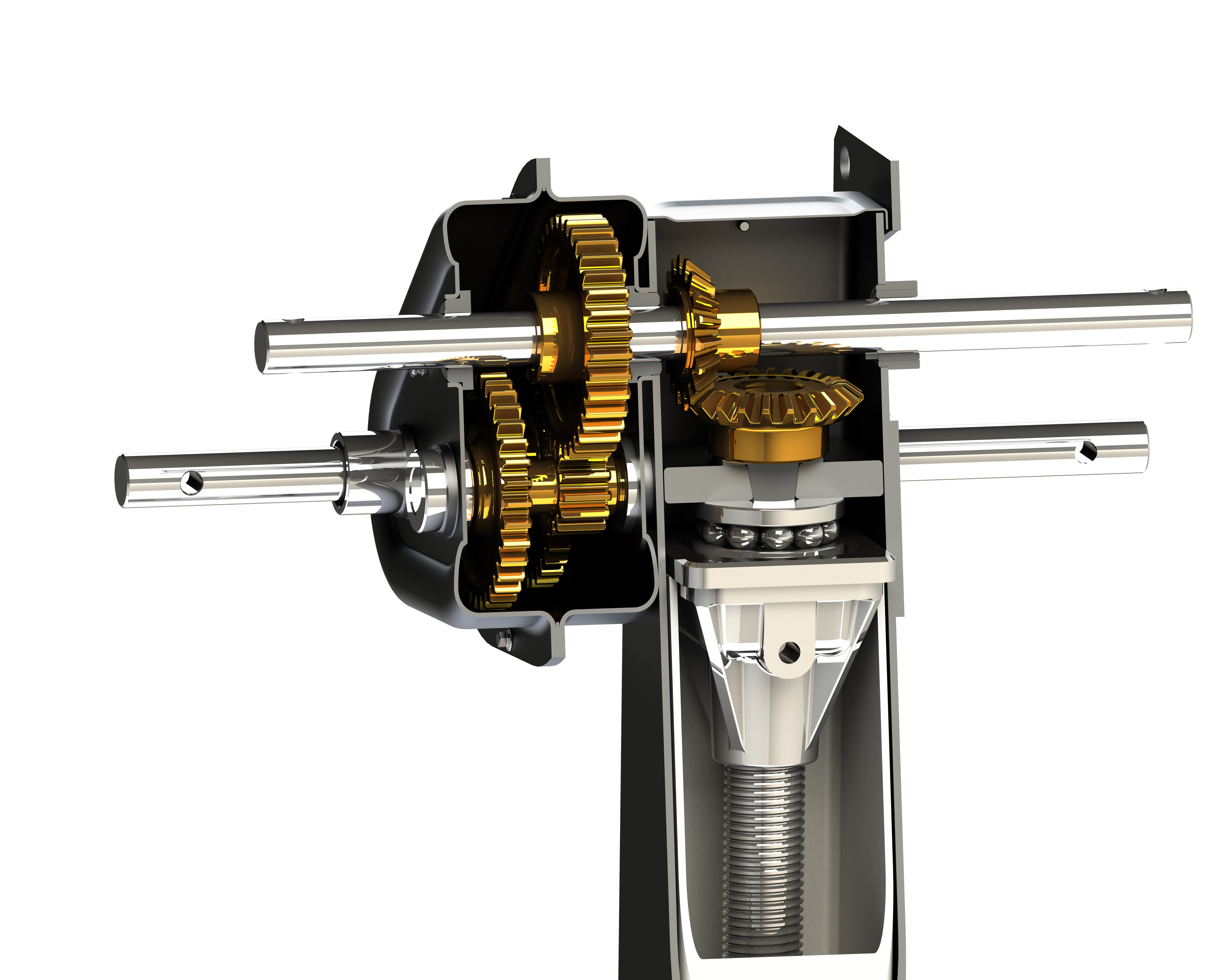

Gears
20CrMnTi gear Hardness:57-60HRCcarburizing treatment Wear resistance、high impact toughness
Heavy duty thrust bearing
National standard GB/T26777-2023impact requirement can be met
