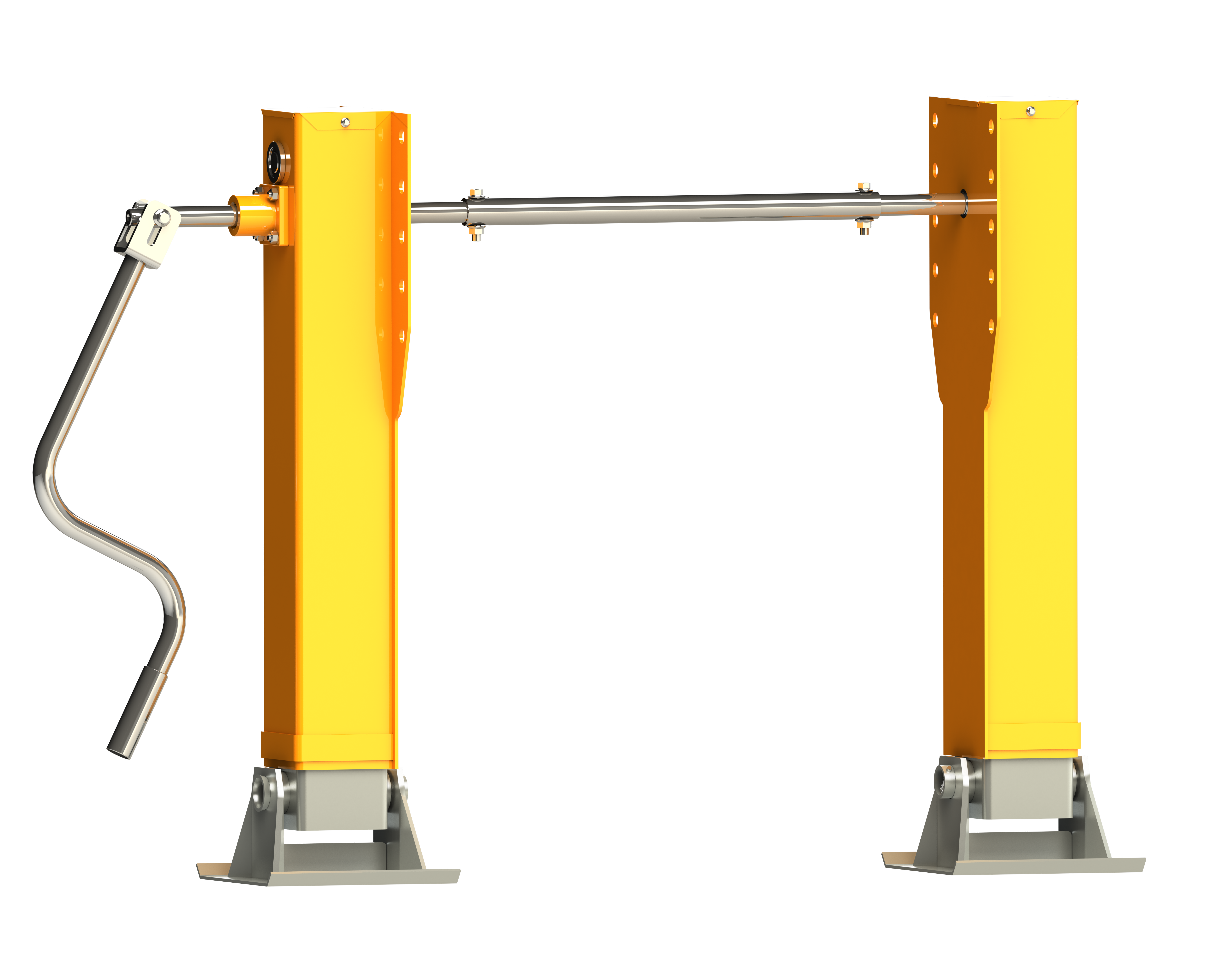

Trailer landing gear LQLS120N
➤A variety of mounting height, backplate are available
➤Built-in gear, compact structure
➤Satisfy the tractor and trailer swap transport
➤Special seal structure,Engineered using the latest technologyto ensure the product asts longer in service
➤the shaft is treated with electrophoretic paint, resists corrosion
➤Built-in gear, compact structure
➤Satisfy the tractor and trailer swap transport
➤Special seal structure,Engineered using the latest technologyto ensure the product asts longer in service
➤the shaft is treated with electrophoretic paint, resists corrosion

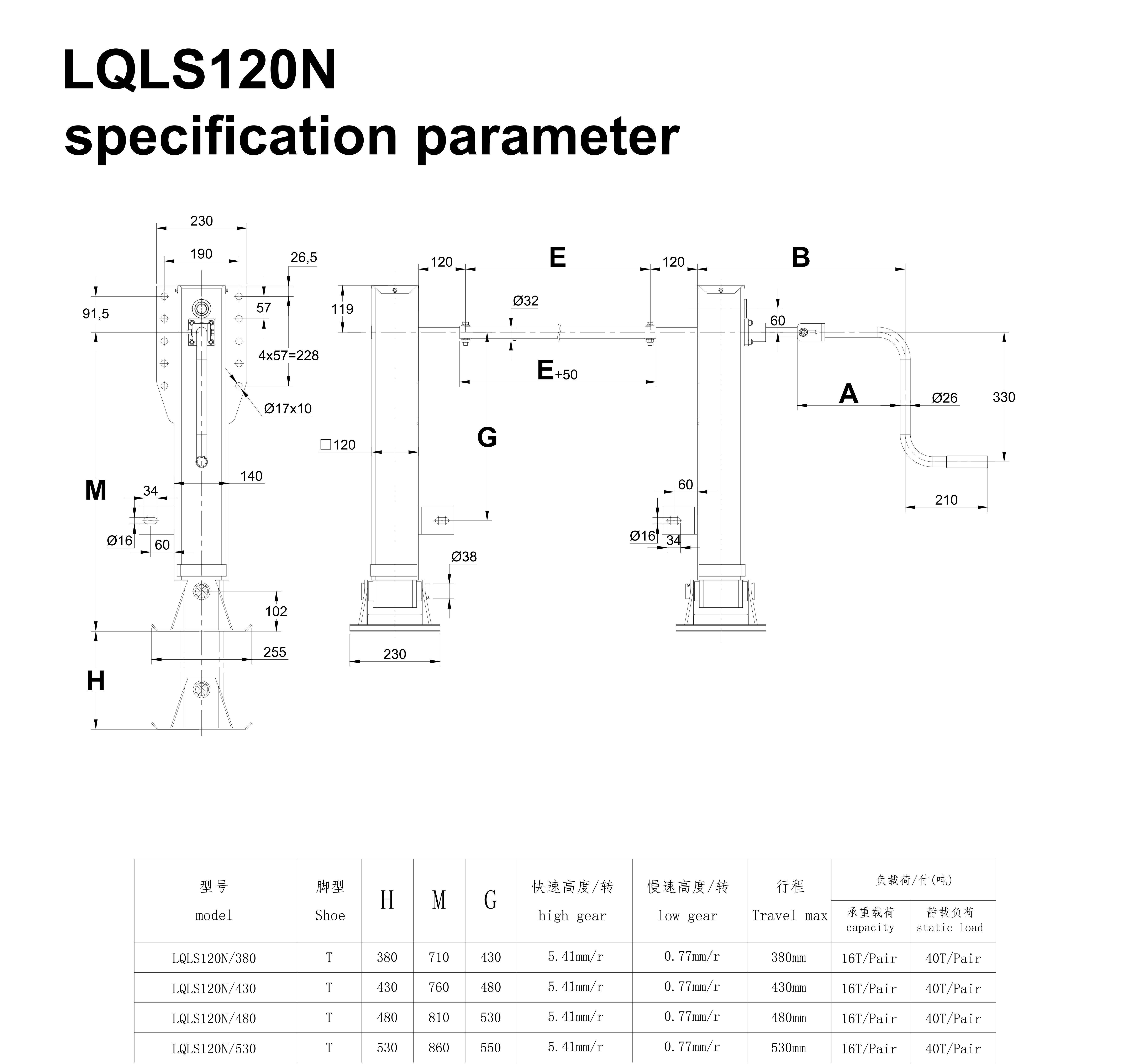

static load：40T/Pair
capacity：16T/Pair
high gear：5.41mm/r
low gear：0.77mm/r
Brand：LQ
Model：LQLS120N
info@luqijx.com
QR code
Detail
Heavy duty thrust bearing
National standard GB/T26777-2023impact requirement can be met
Screw
Single thread screw design,suitable for lightvehicle
Tube
Using high quality steeland square tubes
Gears
Two-speed gear transmission design,work efficiently.
Floating nut
Using the floating nut design,the lowerleg tube of the leg can have a certainamplitude of swing,reduce the impactof the lead screw,fully protect the leadscrew from damage,so as to extend theservice life of the leg
