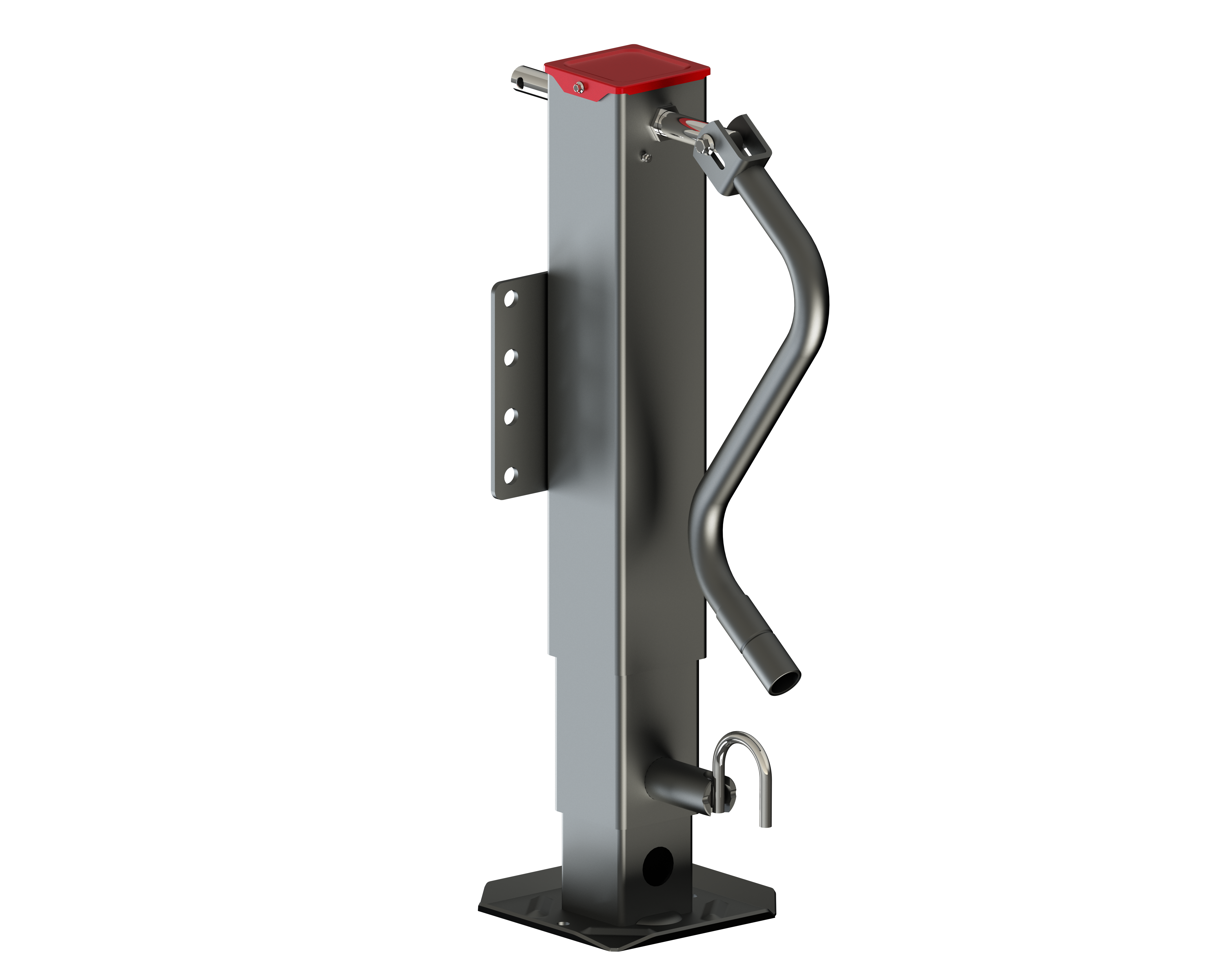

Trailer landing gear LQDS110SJ
➤Trailer special,easy to install,interior design compact structure
➤Adopt two-stage travel to meet different support requirements
➤high strength BS700 tube is used as material bearing is 51305
➤Single thread screw is used
➤Special seal structure Engineered using the latest technology
➤to ensure the product lasts longer in service
➤Adopt two-stage travel to meet different support requirements
➤high strength BS700 tube is used as material bearing is 51305
➤Single thread screw is used
➤Special seal structure Engineered using the latest technology
➤to ensure the product lasts longer in service

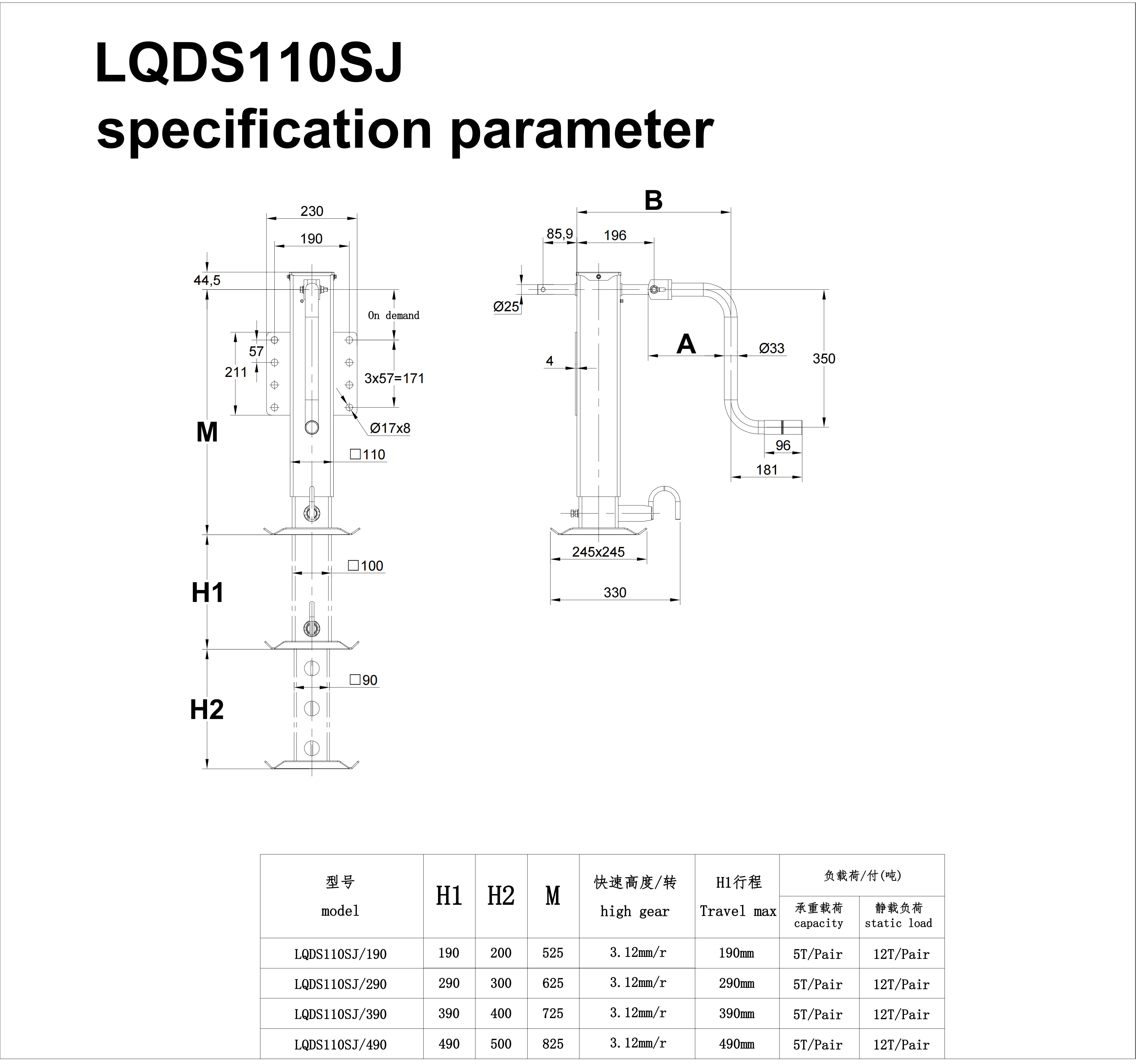

static load：12T/Pair
capacity：5T/Pair
high gear：3.12mm/r
Brand：LQ
Model：LQDS110SJ
info@luqijx.com
QR code
Detail
Heavy duty thrust bearing
bearingis 51305
Screw nut
Screw nut self-lubricating design,products service lfe longer
Tube
high strength BS700 tube is used as material
Cover
Special seal structure Engineered usingthe latest technology to ensure theproduct lasts longer in service
Screw
Single thread screw design,suitable for lightvehicle
